Quick Details

  • Type: Gps Tracker
  • Use: Automotive
  • Screen Size: No Screen
  • Function: Fleet management tracking gps device
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: xiyuan
  • Model Number: Y2
  • Warranty: 12 Months
  • Item No.: Y2
  • Product name: Fleet management tracking gps device
  • GPS positioning accuracy: 15M
  • GSM positioning accuracy: 100M
  • Keyword: tracking gps device
  • GSM Frequency: 850/900/1800/1900MHz
  • Dimensions (mm): 56.5 X 47 X 24.6
  • Weight: 45g
  • Input Voltage: 9-36V DC
  • Build in battery: 200MAh

Packaging & Delivery

Packaging Details Full set include:
1pc Unit
1pc Power Cable
1pc Microphone (Options)
1pc Relay (Options)
1pc SOS Button (Options)
Delivery Time Shipped in 3 days after payment
Contact Name: hayley  Skype id: hayley.deng86  Whatsapp: +86 13590133224

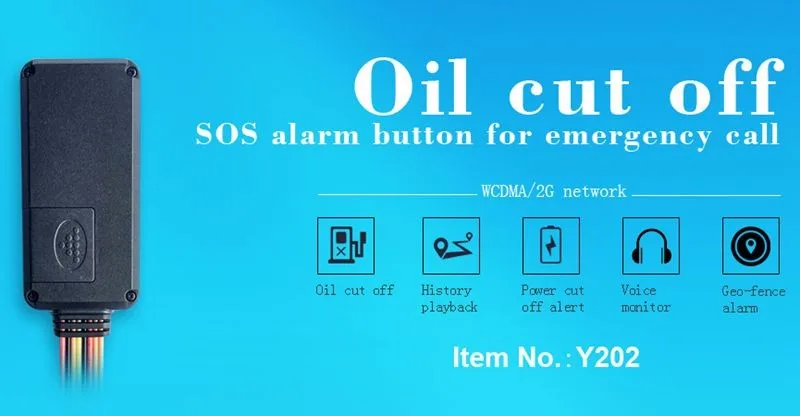

Fleet management tracking gps device Y2/TK116 with web-based online tracking platform Gps tracker for vehicle
Y202-- Fleet management tracking gps device  have a very wide range of industrial and civil applications, is a powerful GPS tracking device, 6-36 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.

Product Features:

1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:9-40V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely



Alarm Types :
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)



Function Extension:
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application



Environment for use :

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery



Basic Specifications:

Working Voltage:12VDC/24VDC
Standby Current<3mA
Work current :<120mA
GPS positioning accuracy15M
GSM positioning accuracy100M
GPS Frequency1575MHz
GSM Frequency :850/900/1800/1900MHz
Hot/warm/cold start time :<3S,<1S,<60S
Dimensions (mm)  :L*W*H: 56.5 X 47 X 24.6
Weight :45 g

Tracking System:



Versions Optional



1.Voltage Optional

1) Input Voltage : 9-80v

    Used widely for vehicle and other moving objects tracking: Electric vehicles, Motorcycles,Cars,Trucks.

2) Input Voltage : 9-40v

    Cars,Trucks



2.Connect Cable Optional

1)  8pins cable

     Connect Power cable, relay, SOS button, microphone

2)  4pins cable

     Connect Power cable, relay





Shenzhen Xiyuan Electronic Technology Co., Ltd is a  Solution Provider of GPS Tracking System,  have strong engineering team and ODM experience, can develop products in every potential form ,For lots of overseas companies make the Customized product which from Russia, UK ,USA ,Malaysia and so on. Customized color, logo and box accepted.

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 6 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

3. Fast reply,Skype id: hayley.deng86
